Products
Nine product families. The figures shown are our maximum sizes, and the size checker below uses the same values.
- 9
- Families
- 16,000mm
- Longest
- Ø 3,000mm
- Largest across
- 30MT
- Heaviest, one piece
Checked against plant data
Check a size
Enter a shape and a size to check it against our published maximum figures.
9 families
Product families
-

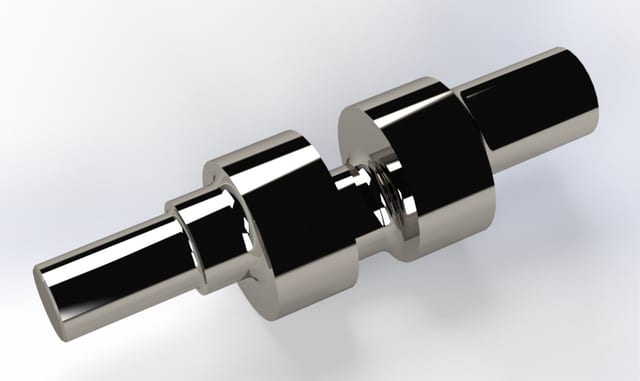

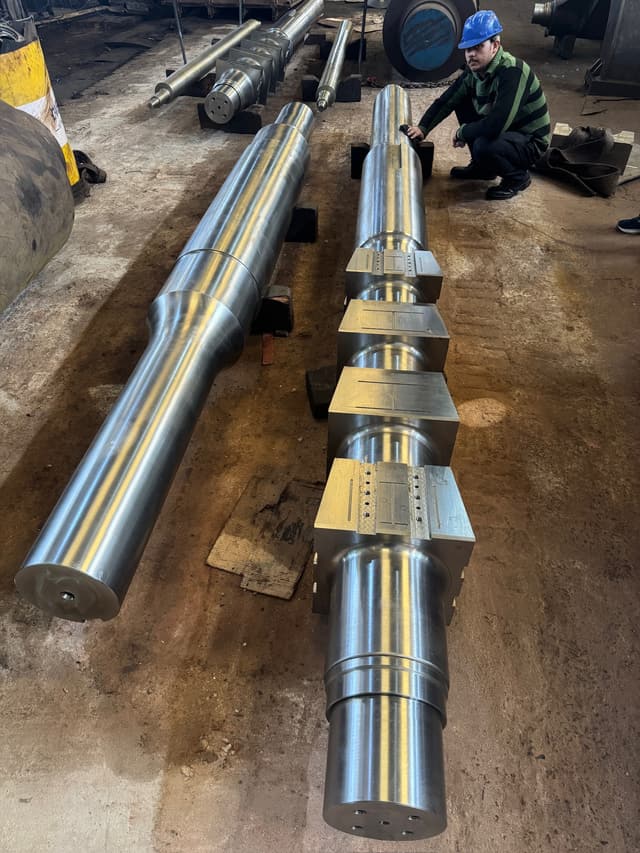

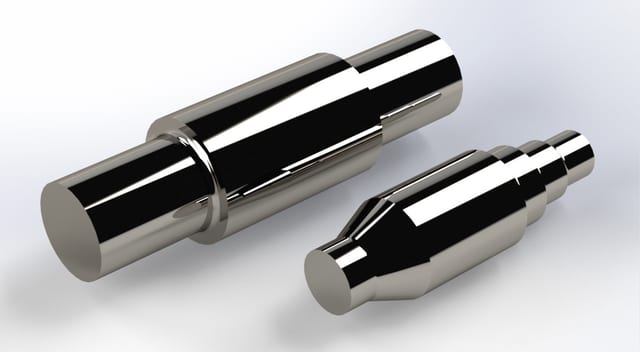

Round shafts / rolls / step shafts
- Max length
- 16,000 mm
- Max diameter
- Ø 2,000 mm
- Max weight
- 30 MT
- Radial forge
- 5,000 M.T. press
- 1,500 M.T. press
-
Crankshafts / eccentric shafts
- Max length
- 6,000 mm
- Max diameter
- Ø 1,500 mm
- Max weight
- 25 MT
- 5,000 M.T. press
- 1,500 M.T. press
-

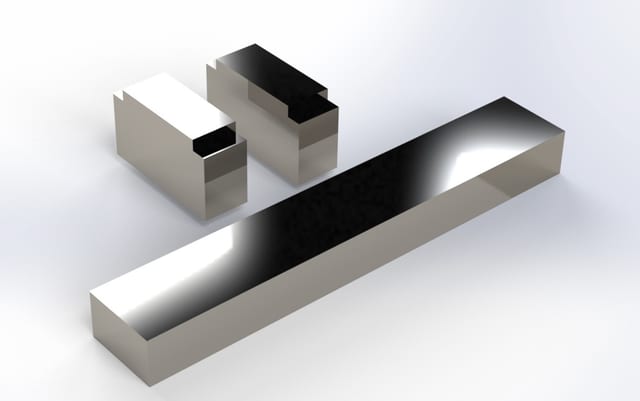

Square blocks / rectangular shafts
- Max length
- 12,000 mm
- Max width
- 2,500 mm
- Max weight
- 30 MT
- 5,000 M.T. press
- 1,500 M.T. press
-

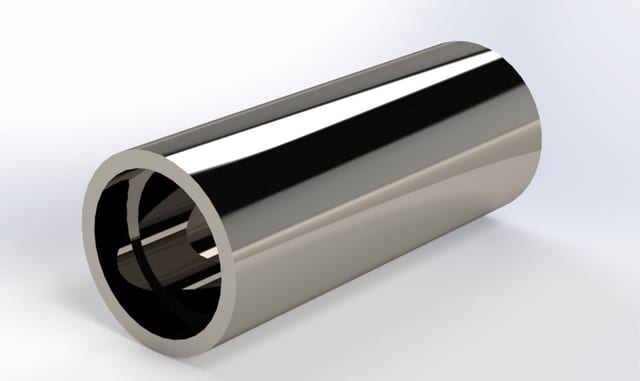

Pipes / hollow shafts
- Max length
- 10,000 mm
- Max O.D.
- Ø 1,500 mm
- Max I.D.
- Ø 1,000 mm
- Max weight
- 30 MT
- Radial forge
- 5,000 M.T. press
-
-

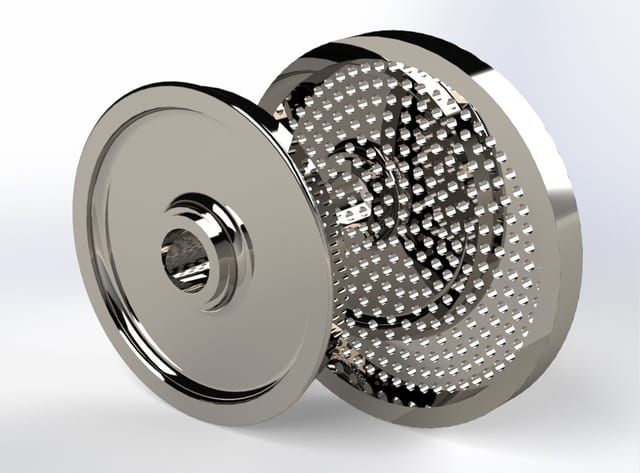

Tube sheets / crane wheels / gear blanks
- Max diameter
- Ø 3,000 mm
- Max weight
- 30 MT
- 5,000 M.T. press
-

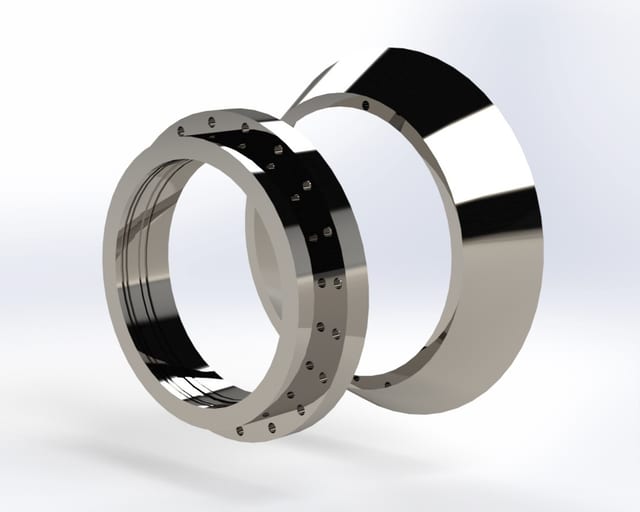

Non-standard flanges
- Max diameter
- Ø 3,000 mm
- Max weight
- 25 MT
- 5,000 M.T. press
-
Bushes / rotors / trunnions
- Max weight
- 25 MT
- 5,000 M.T. press
- 1,500 M.T. press
-

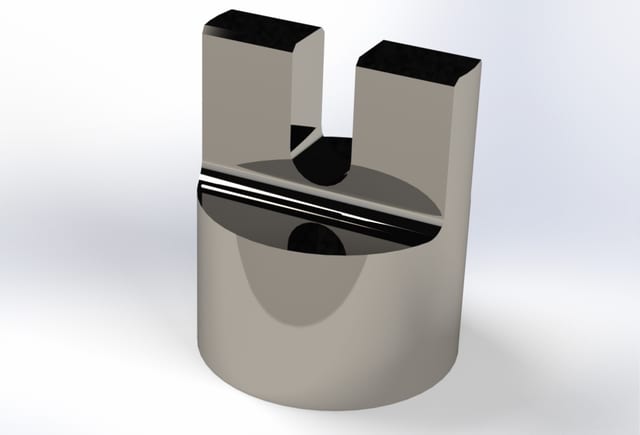

Couplers / hubs / spindles
- Max weight
- 25 MT
- 5,000 M.T. press
- 1,500 M.T. press
All families and maximum sizes as a list
- Round shafts / rolls / step shafts
- 16,000 mm, Ø 2,000 mm, 30 MT
- Crankshafts / eccentric shafts
- 6,000 mm, Ø 1,500 mm, 25 MT
- Square blocks / rectangular shafts
- 12,000 mm, 2,500 mm, 30 MT
- Pipes / hollow shafts
- 10,000 mm, Ø 1,500 mm, Ø 1,000 mm, 30 MT

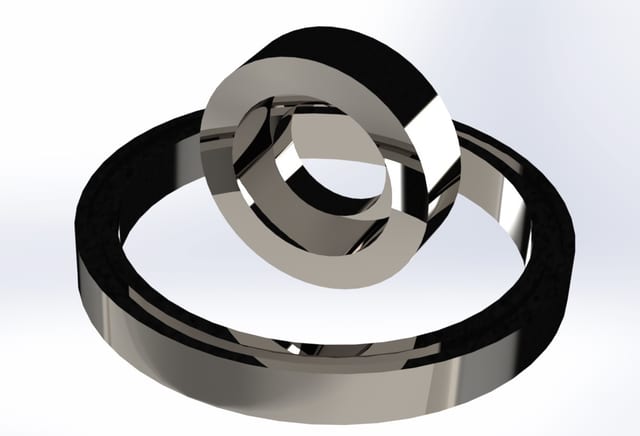

- Rings
- Ø 3,000 mm, 25 MT
- Tube sheets / crane wheels / gear blanks
- Ø 3,000 mm, 30 MT
- Non-standard flanges
- Ø 3,000 mm, 25 MT
- Bushes / rotors / trunnions
- 25 MT
- Couplers / hubs / spindles
- 25 MT
Where a dimension is not listed, we have not published a maximum for it. Please ask.
Company profile
The same figures, equipment list and product families, in a document for your purchasing file.
- The company
- Product families
- Forging equipment
- Heat treatment
- Machining fleet
- Testing and approvals
Send us your drawing
Tell us the shape, grade and quantity, and you will receive a reference number immediately.
